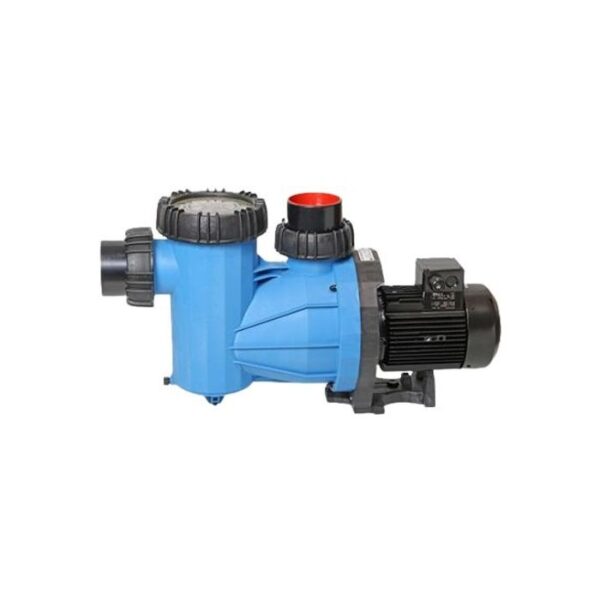

4.0kW BADU Resort 80 – Commercial Submersible/Self-Priming Pump

Brand Chemical Supplies provides high-performance water management systems for the South African commercial and hospitality sectors. The BADU Resort 80 (4.0kW) is a heavy-duty, commercial-grade pump designed for large-scale aquatic facilities, water parks, and industrial cooling systems. Built to withstand continuous high-volume operation, this pump delivers exceptional flow rates while maintaining the legendary reliability of the Speck Pumpen / BADU engineering standard.

---

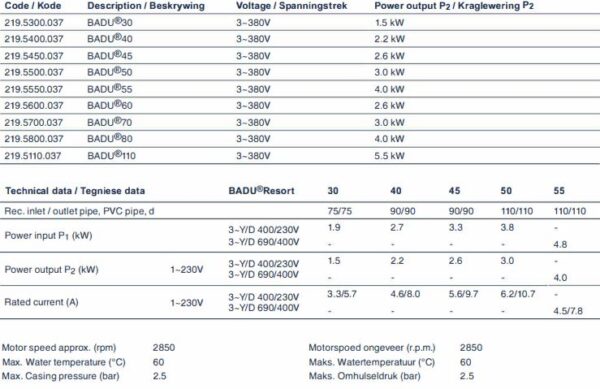

Technical Specifications

• Power Output: $4.0kW$ ($5.4 HP$).

• Voltage: $380V – 400V$ (3-Phase).

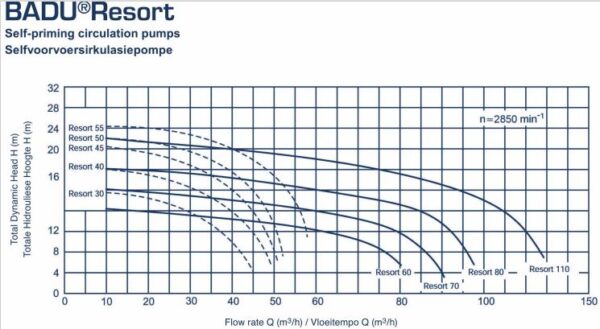

• Maximum Flow Rate: Up to $80 m^3/h$ (at $10m$ head).

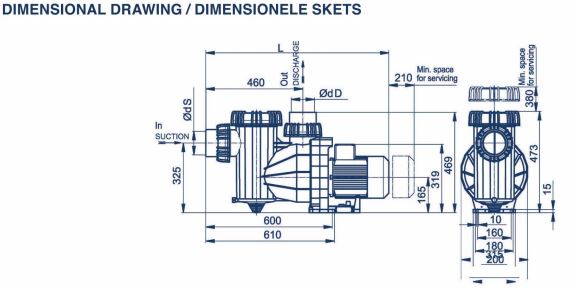

• Inlet/Outlet Connections: $110mm / 90mm$ (Flanged or Glue-in depending on configuration).

• Pre-Filter Capacity: Integrated $10 L$ large-capacity strainer basket.

• Material: Glass-fiber reinforced plastic (corrosion-resistant).

• Shaft Seal: Maintenance-free mechanical seal (carbon/ceramic).

---

Key Features & Benefits

• High-Volume Commercial Capacity: Engineered specifically for facilities that require massive water turnover, such as Olympic-sized pools, hotel lagoons, and large-scale water features.

• Corrosion Resistance: The all-plastic construction ensures the pump is completely immune to pool chemicals and salt water, providing a significantly longer service life than cast-iron alternatives.

• Exceptional Energy Efficiency: Despite its $4.0kW$ power rating, the Resort 80 is hydraulic-optimized to provide maximum flow per kilowatt, helping to manage the operational costs of large facilities.

• Low Maintenance Design: The oversized $10 L$ strainer basket captures large debris, reducing the frequency of maintenance stops. The transparent lid allows for rapid visual inspection.

• Safe Electrical Separation: The motor and pump shaft are designed with complete electrical separation, ensuring maximum safety for public aquatic environments.

---

Primary Applications

• Public & Commercial Swimming Pools: Ideal for municipal pools, schools, and high-occupancy resort lagoons.

• Water Parks & Slides: Providing the high-volume water flow necessary for aquatic attractions and slides.

• Industrial Cooling Towers: Circulating water in large-scale technical cooling systems where chemical resistance is required.

• Aquaculture & Large Ponds: Maintaining water quality and oxygenation in high-density fish farming or massive decorative koi ponds.

---

Installation & Maintenance Guidelines

• Electrical Installation: Must be installed by a qualified electrician and connected to a suitable motor protection switch (circuit breaker) rated for 3-phase power.

• Foundation: Should be mounted on a solid, level concrete base to minimize vibration and noise.

• Priming: Ensure the strainer housing is filled with water before the initial startup. The self-priming capability allows for air evacuation in the suction line up to $3m$.

• Strainer Care: Clean the $10 L$ basket regularly to maintain optimal flow and prevent motor strain.

---

Ordering & Logistics

Brand Chemical Supplies ensures your commercial facility stays operational with professional-grade hardware and support.

• Inventory: Stocked as a complete unit; flanged connections and technical seals are available as spare parts.

• Regional Delivery: Specialized delivery for heavy equipment to Johannesburg, Durban, Cape Town, and Nelspruit.

• Technical Support: Our specialists can provide head-loss calculations to ensure the $4.0kW$ unit is the correct size for your filtration system.

Contact our commercial aquatic team today to secure your 4.0kW BADU Resort 80 and ensure the highest standards of water circulation for your facility.
