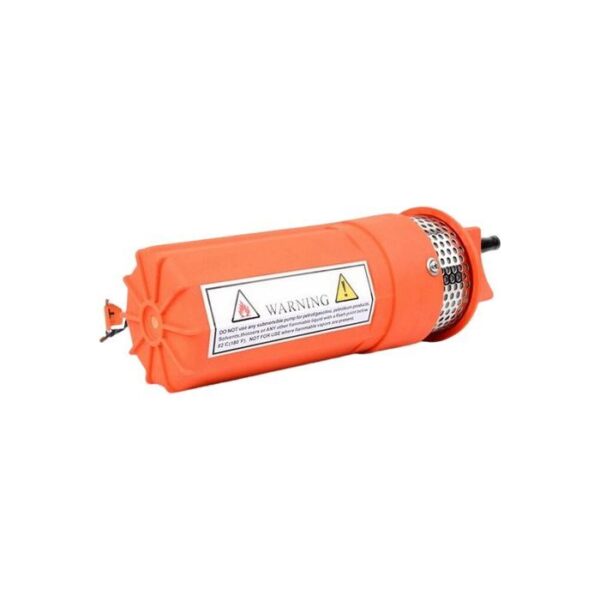

12V DC Submersible Pumps – Portable Fluid Transfer Solutions

12V DC Submersible Pumps – Portable Fluid Transfer Solutions

Brand Chemical Supplies provides a range of high-efficiency 12V DC Submersible Pumps, designed for versatile, low-voltage fluid management. These pumps are the ideal solution for environments where AC mains power is unavailable, such as remote agricultural sites, mobile service vehicles, and off-grid marine applications.

Technical Specifications (Standard Model)

• Voltage: 12V DC (Powered by vehicle battery or solar system).

• Flow Rates: Available from 12L/min to 80L/min (Model dependent).

• Max Head: 3m – 10m.

• Cable Length: Typically 3m – 5m with battery clips (crocodile clips).

• Connection: 12mm – 25mm hose barb (depending on flow rate).

• Housing Material: Stainless Steel or impact-resistant ABS Plastic.

Key Features & Benefits

• High Portability: Lightweight and compact, these pumps are easily transported in a tool kit or vehicle storage box for rapid deployment.

• Direct Battery Connectivity: Equipped with heavy-duty battery clips for immediate connection to any standard 12V lead-acid, AGM, or Lithium battery.

• Continuous or Intermittent Duty: Higher-end stainless steel models are designed for longer run times, while lightweight ABS models are perfect for quick transfer tasks.

• Silent Operation: Submersible design naturally dampens motor noise, providing a quiet alternative to surface-mounted transfer pumps.

• Integrated Strainer: Features a removable stainless steel or plastic mesh filter at the base to prevent debris from damaging the internal impeller.

Primary Applications

• Diesel Transfer: Rapidly refueling machinery, tractors, and generators from drums or mobile tanks (Note: Only use models explicitly rated for fuel).

• Agricultural Irrigation: Small-scale watering from rain barrels, troughs, or shallow wells for livestock or nurseries.

• Marine & Boating: Ideal as emergency bilge pumps or for cleaning decks and equipment on vessels.

• Technical Maintenance: Draining flooded basements, cable pits, or machinery sumps during facility maintenance.

• Camping & 4×4: Setting up portable shower systems or transferring water for cleaning at remote campsites.

Usage & Maintenance Guidelines

• Duty Cycle: Most 12V pumps are designed for a 15–20 minute duty cycle. Allow the pump to cool down between uses to prevent motor burnout.

• Dry Running: Do not run the pump dry. Submersible pumps rely on the fluid they are pumping for motor cooling and lubrication.

• Fluid Compatibility: Ensure the pump material is compatible with the fluid. Never use standard 12V pumps for petrol or flammable liquids with low flash points.

• Cleaning: Rinse with clean water after use, especially if pumping salt water or technical fluids, to prevent corrosion of the impeller.

Contact our technical team today to find the right 12V Submersible Pump for your specific fluid transfer requirements.
