Professional Sewer Inspection Camera System (Bor-GT100)

Professional Sewer Inspection Camera System (Bor-GT100)

Brand Chemical Supplies provides the Bor-GT100, a heavy-duty, long-range inspection system engineered for the demanding requirements of municipal drainage, industrial piping, and civil engineering. With a reinforced 100-meter push rod and integrated 512Hz Sonde locator, this system allows for the precise visual inspection and physical mapping of underground infrastructure.

Technical Specifications

Key Features & Benefits

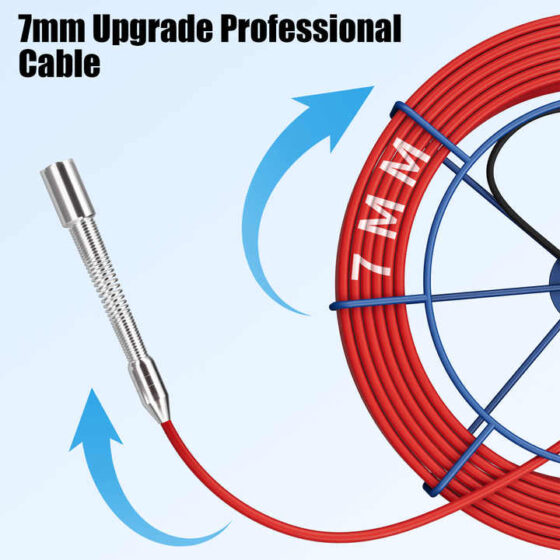

• Long-Range Penetration: The $100m$ push rod is constructed from reinforced $7mm$ fiberglass, offering the perfect balance between flexibility for $90°$ bends and the stiffness required to push deep into long-running sewer mains.

• Integrated 512Hz Locator: The camera head features a built-in Sonde transmitter. When paired with a 512Hz receiver, you can pinpoint the exact underground location and depth of a pipe blockage or structural failure from the surface, eliminating unnecessary excavation.

• Superior Imaging: The $23mm$ self-leveling (optional) camera head is protected by a scratch-resistant sapphire glass lens. The high-output LEDs ensure crystal-clear footage even in pitch-black, high-moisture environments.

• Full Digital Documentation: The integrated DVR allows operators to record high-definition video and voice-over commentary directly to an SD card or USB drive. This is essential for providing proof-of-service and detailed condition reports to clients or municipal boards.

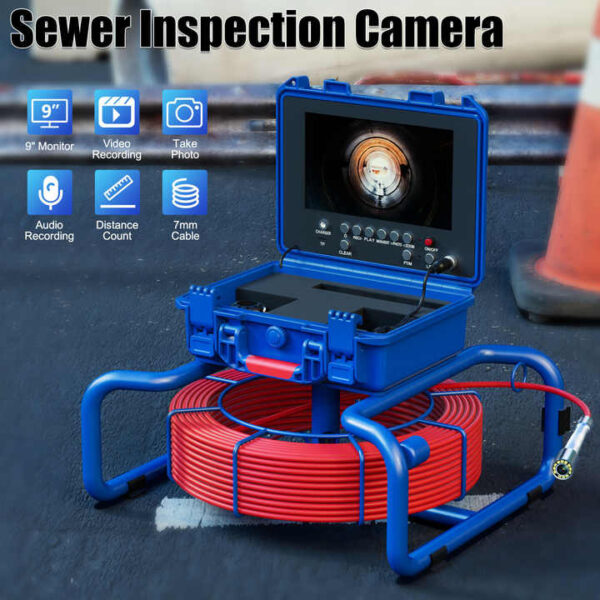

• Ruggedized Command Center: The system is housed in a heavy-duty, waterproof ABS carrying case. The 9-inch monitor is sunlight-readable, making it ideal for outdoor field use.

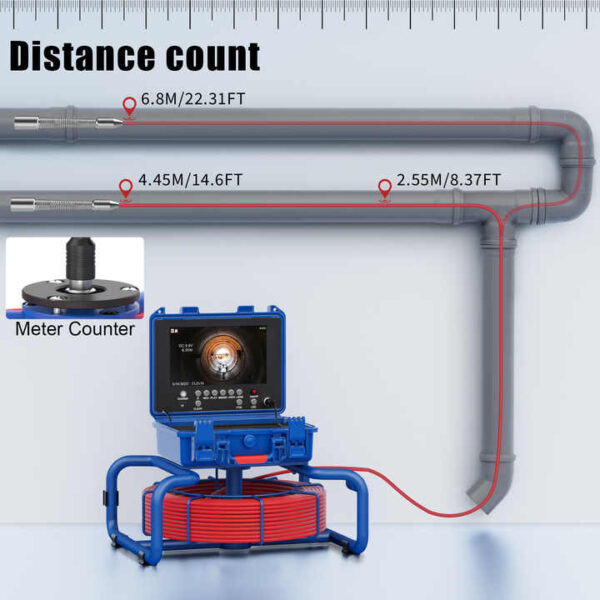

• Distance Counter: The on-screen display shows the exact length of cable deployed (in meters/feet), allowing for precise measurement of where a defect is located within the pipe.

Primary Applications

• Municipal Infrastructure: Inspecting main sewer lines for root intrusion, cracks, and collapses.

• Industrial Maintenance: Checking high-volume discharge pipes in chemical plants and factories.

• Civil Engineering: Surveying conduits and culverts prior to road construction or site development.

• Plumbing & Drainage: Identifying blockages in large commercial building stacks and underground grease traps.

Maintenance & Support

• Cable Care: After each use, it is recommended to wipe the cable with a disinfectant cloth as it is retracted into the reel to maintain hygiene and longevity.

• Interchangeable Heads: Different camera head sizes and skids are available to accommodate pipe diameters ranging from 40mm up to 200mm.

Contact our technical sales team at Brand Chemical Supplies today to secure your Bor-GT100 Inspection System and bring high-definition clarity to your underground operations.
