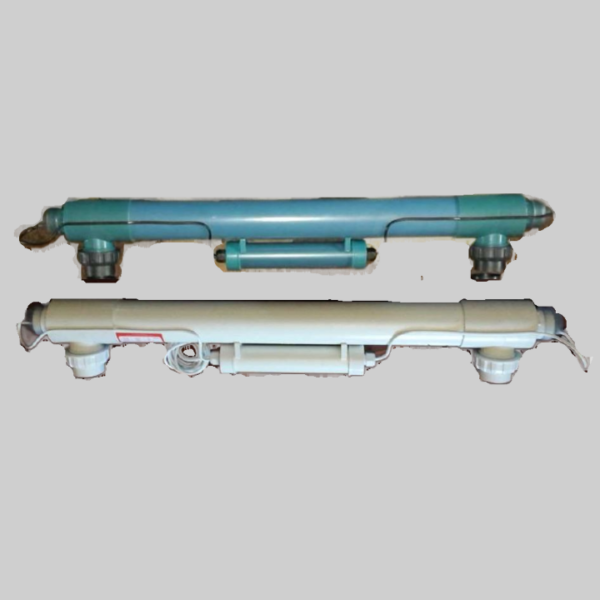

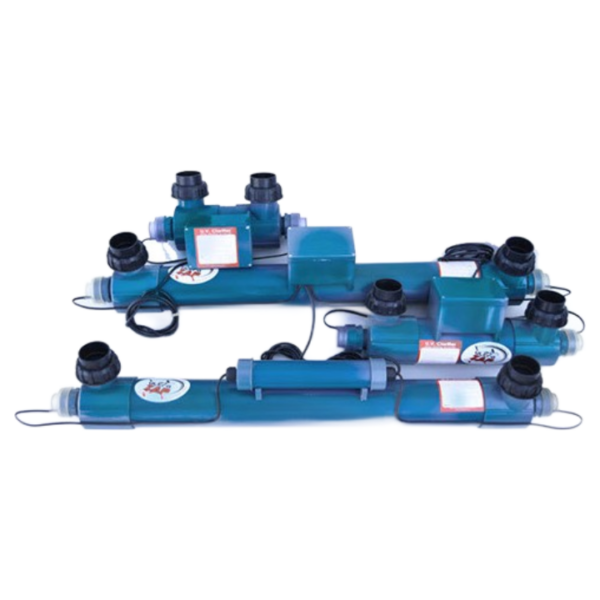

55 Watt Professional UV Sterilizer
Brand Chemical Supplies provides the 55W Professional UV Sterilizer, an industrial-grade water treatment system designed for the continuous eradication of waterborne pathogens. This system utilizes high-intensity ultraviolet radiation to disrupt the genetic material of bacteria, viruses, and algae, providing a chemical-free solution for crystal-clear, safe water in high-volume applications.
Technical Specifications
| Feature | Specification |
| Power Consumption | $55 W$ |
| Max Flow Rate | $\approx 45 \sim 55 Liters$ per minute ($2700 \sim 3300 L/h$) |
| Chamber Material | 304 or 316 Stainless Steel (Polished) |
| Inlet/Outlet Size | $3/4″$ or $1″$ Male BSP Thread |
| Lamp Lifespan | $\approx 9,000$ Hours (Approx. 1 year of continuous use) |
| Max Operating Pressure | $10 Bar$ |
| UV Dose | $\ge 30 mJ/cm^2$ (at rated flow) |
Key Features & Benefits
-
High-Grade Stainless Steel Reactor: The polished internal surface of the chamber reflects UV light back into the water, increasing the effective dosage and ensuring no “shadow zones” where microbes can escape.
-
Chemical-Free Disinfection: Unlike chlorine or ozone, UV treatment does not change the taste, odor, or pH of the water, and it creates no harmful byproducts ($DBPs$), making it ideal for potable water and sensitive aquatic life.
-
High-Transmittance Quartz Sleeve: Protects the lamp from water contact while allowing maximum UVC energy penetration. The high-purity quartz ensures that the $254nm$ wavelength is delivered with minimal loss.
-
Electronic Ballast with Alarm: The dedicated power supply ensures a stable current to maximize lamp life. It includes LED indicators and an audible failure alarm to notify maintenance staff immediately if the lamp expires.
-
Rapid Pathogen Deactivation: Effectively targets common waterborne threats including E. coli, Cryptosporidium, Giardia, and various forms of green water algae.
Primary Applications
-
Borehole & Well Water: Providing a final safety barrier for domestic water supplies drawn from underground sources.
-
Aquaculture & Large Ponds: Controlling algae blooms and preventing the spread of disease in koi ponds and commercial fish farms.
-
Food & Beverage Industry: Sterilizing ingredient water and rinse water for bottling lines and food preparation.
-
Residential Whole-House Filtration: Installed as the final stage of a home filtration system to ensure “point-of-entry” biological safety.
-
Rainwater Harvesting: Treating stored rainwater for use in laundry, gardening, or toilet flushing.
Installation & Maintenance
-
Vertical or Horizontal Mounting: The unit can be mounted in either orientation, but ensure there is enough clearance to slide the $900mm$ lamp out for annual replacement.
-
Pre-Filtration is Mandatory: For UV to work effectively, the water must be clear. We recommend a 5-micron sediment filter be installed prior to the UV system to prevent “shadowing,” where bacteria hide behind suspended particles.
-
Quartz Sleeve Cleaning: Depending on water hardness, mineral scale can build up on the quartz sleeve. It should be inspected and cleaned every $3 \sim 6$ months using a mild acid (like vinegar or citric acid) to maintain UV intensity.
-
Lamp Replacement: Even if the lamp is still glowing blue after 1 year, the germicidal UVC output significantly drops. Replace the lamp every 9,000 hours to ensure continued disinfection.
Contact our water treatment specialists at Brand Chemical Supplies today to secure your 55W Professional UV Sterilizers and ensure the biological integrity of your water supply.
