1300kw VANSAN Drainage Pump

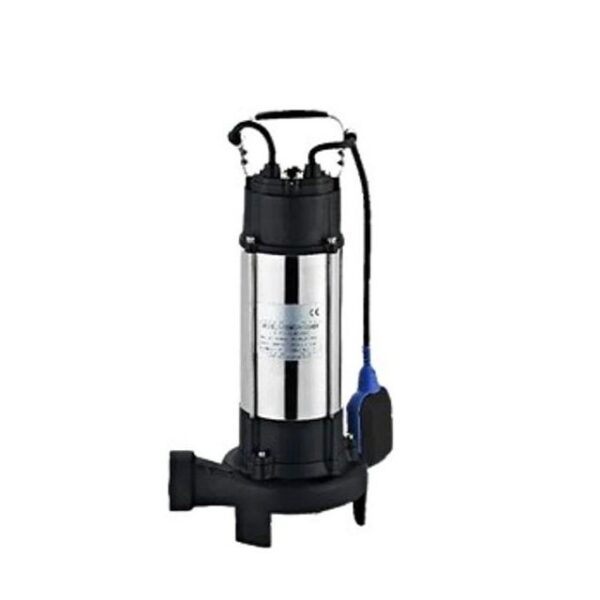

VANSAN V1300DF Submersible Drainage Pump (1.3kW)

Brand Chemical Supplies provides high-efficiency wastewater management solutions tailored for South African industrial and residential applications. The VANSAN V1300DF (often referred to as the 1300 model) is a robust 1.3kW submersible dewatering pump designed for demanding drainage tasks. Equipped with an integrated cutter mechanism, this pump is specifically engineered to handle “dirty water” and macerate fibrous materials, preventing clogs in municipal and factory sewage systems.

Technical Specifications

• Model: V1300DF (V-Range).

• Power Output: 1.3kW (1.7 HP).

• Voltage: 230V / 50Hz (Standard Single-Phase).

• Maximum Flow Rate: Approximately 300 L/min (Model dependent).

• Maximum Head (Lift): 12m – 15m.

• Immersion Depth: Maximum 5m.

• Cutter Mechanism: Heavy-duty integrated shredder for solids and fibrous waste.

• Liquid pH Range: 4 – 10.

• Max Liquid Temperature: 40°C.

Key Features & Benefits

• High-Torque Macerator: The precision-engineered cutter at the pump inlet shreds solids and debris, ensuring seamless passage through the pump and discharge piping.

• Automatic Float Switch: Includes an integrated float switch for automated operation, triggering the pump as water levels rise and protecting the motor against dry-running.

• Durable Construction: Built with a rugged metal body and a stainless steel welded shaft for maximum resistance to corrosion and mechanical wear in aggressive environments.

• Thermal Protection: Features a built-in thermal protector within the copper windings to prevent motor burnout during heavy-duty cycles or temporary blockages.

• IPX8 Submersible Rating: Fully sealed motor unit (Insulation Class B) designed for continuous submersion in wastewater sumps and methane pools.

Primary Applications

• Factory & Industrial Drainage: Managing wastewater containing debris, textiles, or organic solids in processing plants and construction sites.

• Municipal Sewage Systems: Ideal for small-scale sewage lift stations and municipal wastewater treatment facilities.

• Trench & Sump Dewatering: Rapidly clearing flooded excavations, basements, and residential sumps after heavy rainfall.

• Agriculture & Countryside: Efficiently managing methane pools, slurry pits, and field irrigation drainage.

• Commercial Facilities: Reliable waste management for hotels, shopping centers, and apartment complexes.

Usage & Maintenance Guidelines

• Duty Cycle: Designed for periodic drainage. Avoid continuous 24/7 operation to maximize the lifespan of the mechanical seals.

• Installation: Ensure the pump is placed on a stable, level surface. If the sump bottom is heavily silted, suspend the pump slightly or place it on a concrete plinth to prevent the intake from burying.

• Cutter Maintenance: Periodically inspect the cutter blades for tangles of wire or exceptionally hard debris that could impede rotation.

• Cable Care: Do not use the power cable to lift or lower the pump; always use a dedicated stainless steel wire or nylon rope attached to the handle.

Contact our wastewater technical team today to secure your VANSAN 1.3kW Drainage Pump and ensure effective, clog-free water management.
